Sensitivity: 98dB(dB SPL.1Watt@1m)
Maximum SPL: 123dB continuous/126dB peak
Nominal Impedance: 8Ohms
Rated Power: 350W AES/700W Peak
Dispersion(+/-8dB): 70°*100°(HxV)
Frequency(+/-3dB): 47-20000Hz
H*W*D: 600*360*382(mm)
Weight: 18.5Kg
●The use of the United States imported BIC units, high-performance NdFeB magnet steel tweeter, strong magnetic, strong sense of energy, ability to bring strong driver drive unit and wide dynamic range, and ensures that the high-frequency transparent, delicate and soft.
● Low frequency for special magnetic steel high power long stroke drive unit, with the air gap cooling technology (VGC) magnetic circuit system, under the condition of high power for a long time use to keep good heat dissipation effect.
● Carefully designed frequency divider, adopts advanced passive crossover network design, minimize high and low frequency overlap, optimize the expressive force of vocals, the recoverable PTC protector high protection technology.
● Low box made by the multi-layer birch plywood with high quality, in the interior with a number of other reinforcement, strengthening the overall soundness of the enclosure, able to work in the loud when reduce the body resonance.
Product Applications:
● Amplified music and concert use upscale nightclubs, exclusive clubs, upscale buffet-style KTV, m
（Product Testing）
|
|

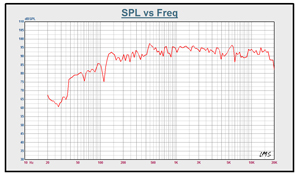

PH-12 Frequency response curve
|

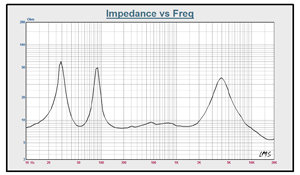

PH-12 Impedance graph
|
