Technical Parameter (Specifications)
Power: 400 w to 800 w (8 Ω)
Sensitivity: 99db(LMS.1m.1w test)

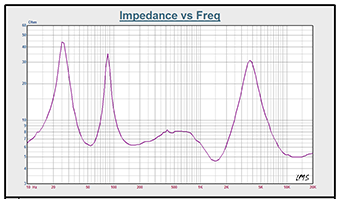

Impedance: 8 Ω
Frequency response range: 45HZ--20KHZ
The size of the wooden case is（H*W*D）： 680*410mm*440mm
Net weight: 23.5KG/ piece
●15"*1,1.5"*1 full frequency box, treble unit adopts American customized BIC unit, neodymium iron boron magnetic steel treble horn, u-shaped structure to reduce magnetic leakage, with higher performance,Medium
frequency round, sweet and full; The bass unit adopts the original BIC bass and the unique voice coil magnetic circuit self-cooling technology. The low frequency is deep,thick and strong.
● splitter for manual welding, fine operation, German GAD and YONTEX Taiwan high quality audio capacitor, Taiwan BENNIC resistance, large diameter high purity inductance.
● wooden cases all use birch and eucalyptus mixed plywood, imported wood rubber powder. Surface of the most popular spray point paint spraying process. The inverted phase
structure at the back of the box makes more efficient use of low-frequency energy

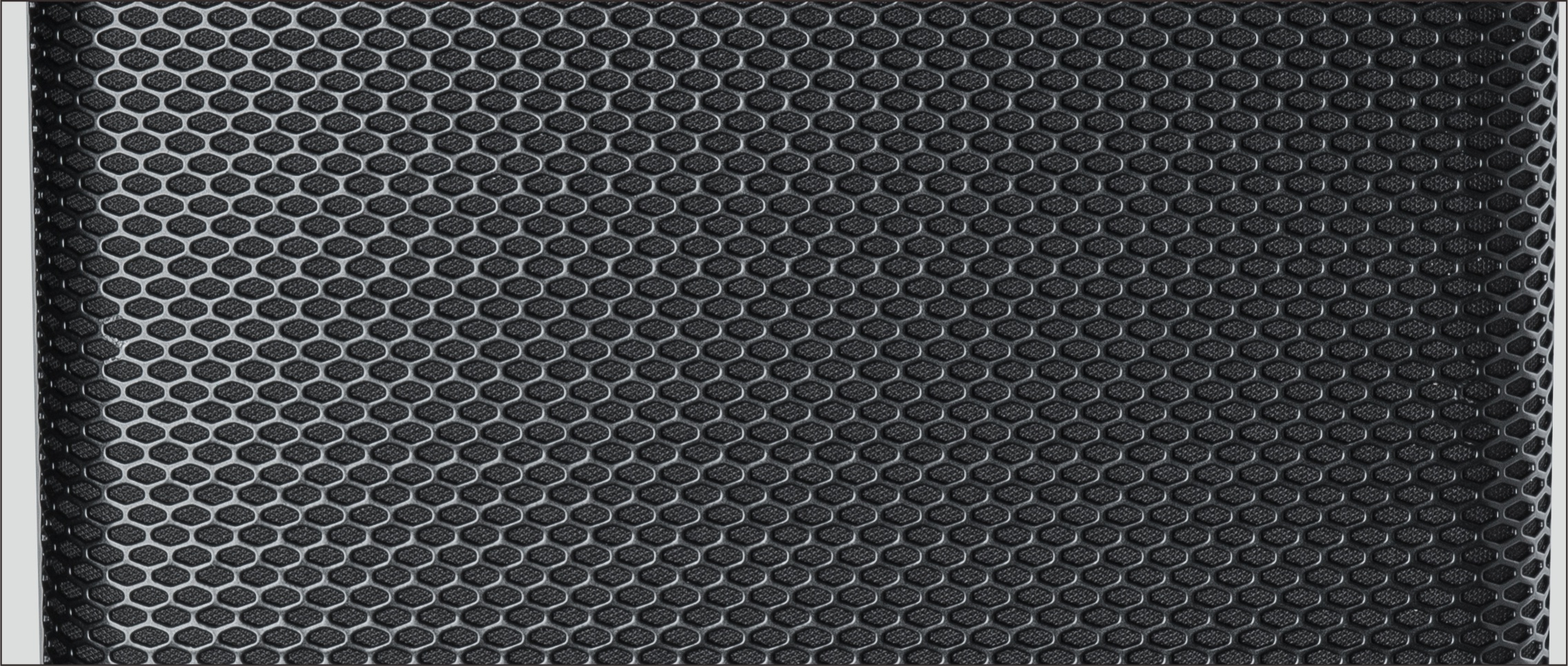

● waterproof breathable mesh is pasted inside iron mesh, which can effectively reduce odd harmonics, enhance visual aesthetics, and increase the fidelity and softness of sound.
Product Performance And Decoration
