Technical Parameter (Specifications)
Power: 400 w to 800 w (8 Ω),
Sensitivity: 97dB(lms.1m.1w test),

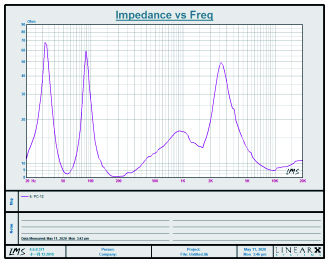

Impedance: 8 Ω,

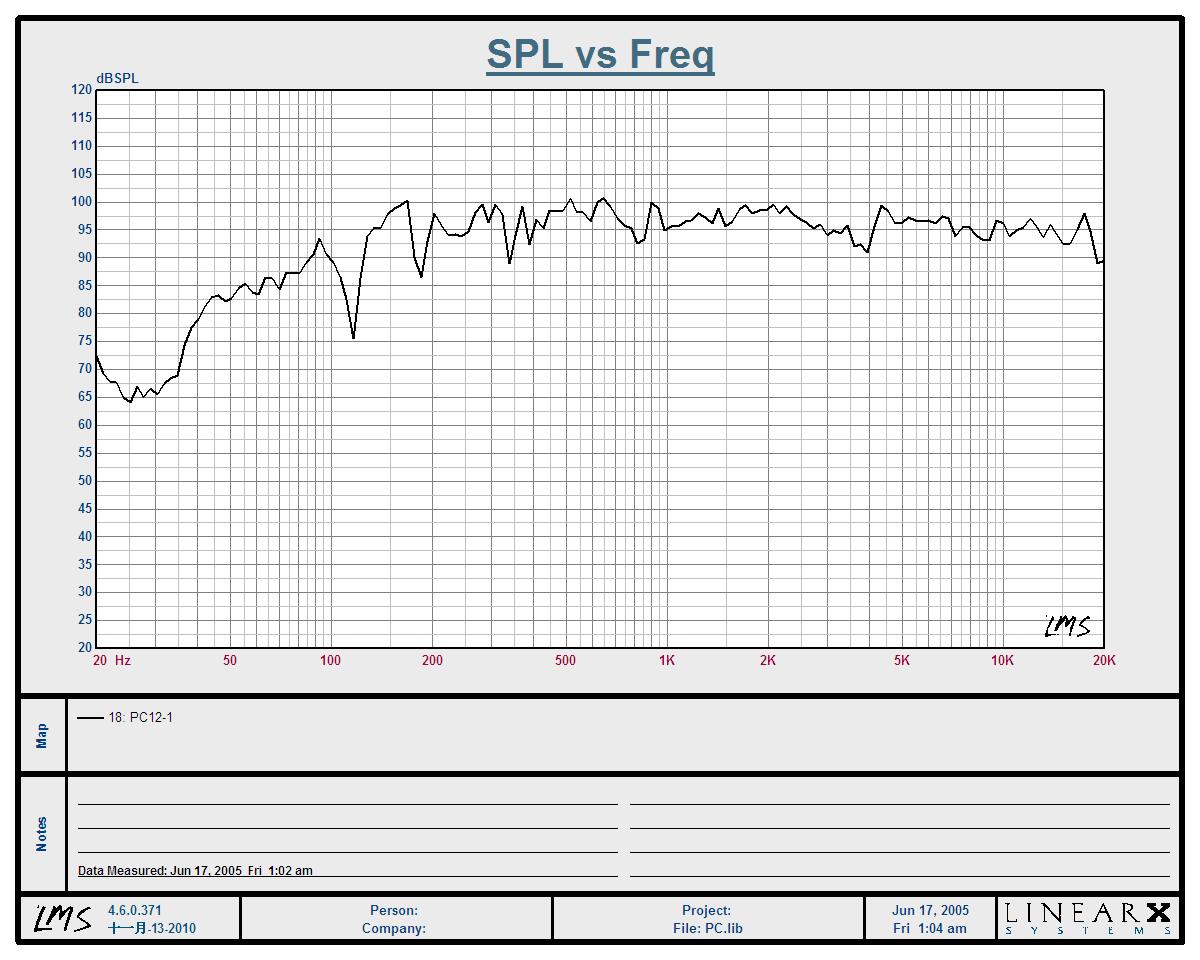

Frequency response range: 53HZ--20KHZ,
The size of the wooden case is (H*W*D):600mm*360mm*382mm.
Net weight: 22.5kg/piece.
● 12 "* 1,1.75" * 1 full frequency box, tweeter unit adopts American custom BIC unit, middle frequency is round, sweet and full, high frequency is soft and delicate; The bass unit adopts the original BIC bass from the United States, the unique magnetic circuit short-circuit ring technology, the low frequency is deep and thick, and the sense of encircle is strong.
Audio splitter for manual welding, fine operation, Spain´s top audio capacitance, high power resistance, large wire diameter high purity copper wire winding inductance.
● wooden case surface using the most popular spray paint spraying process. The rear invert structure of the box makes more efficient use of low-frequency energy
● waterproof and breathable mesh cloth is pasted inside the iron network, which can effectively reduce odd harmonics, enhance visual beauty, increase the fidelity and softness of sound.
● covering Angle: W100°*H70°
Product Performance And Decoration
