Technical Parameter (Specifications)

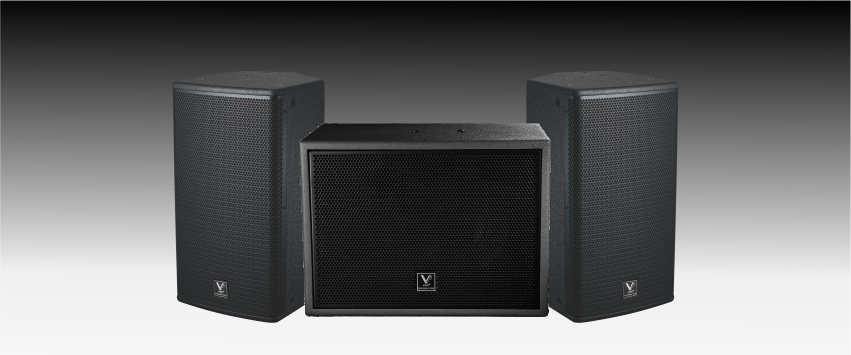

PF series product highlights:
● the box body is made of Russian high-density birch plywood and high-strength wood glue powder. It is meticulously built by senior technicians, and the surface adopts the most popular water-based spray painting process.
● the speaker system adopts the direct radiation inverted design of the speaker, the medium frequency is mellow, the vocal performance is delicate, soft and loose, the penetration is strong, and the high frequency is transparent and delicate.
The unique design of the splitter adopts wronda advanced audio capacitor, low loss and high purity oxygen free copper winding inductance.
● high strength iron mesh, with dust-proof mesh on the surface, can effectively reduce odd harmonics, enhance visual beauty, and effectively protect the use safety of system unit.
● the unique round horn is adopted, the diffusion angle is uniform, and the horizontal and vertical directions are all 90 degrees.

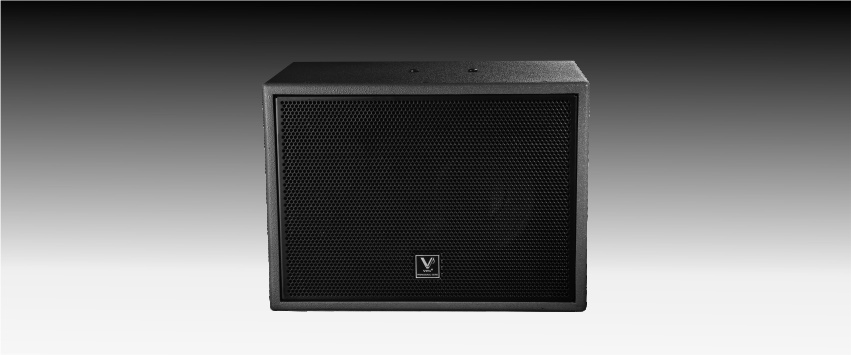

Features of sw-v series products:
● the voice coil adopts double wire parallel winding to reduce the outer diameter of voice coil. The long stroke design voice coil winding width is 40mm.
● the voice coil outgoing line is fixed on the elastic wave, effectively improving the reliability of the outgoing line without affecting the operation of the horn.
High strength aluminum basin and rubber edge can effectively reduce harmonic distortion caused by drum paper.
● T iron increases the middle hole to improve the heat dissipation of the system, and back convex is used to increase the horn stroke.
Product Performance And Decoration
Sw-v12 frequency response curve sw-v12 impedance curve
Pf-08 frequency response curve pf-08 impedance curve
Pf-10 frequency response curve pf-10 impedance curve
