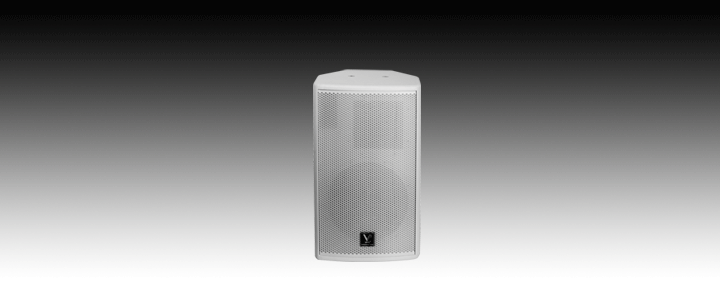

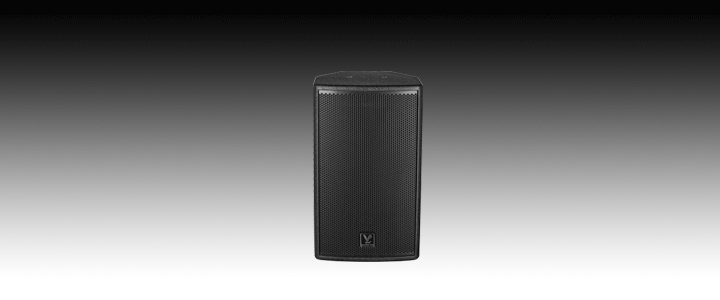

Professional box / PW-10
Technical Parameter (Specifications)

(Specifications):

(Frequency Response): 52Hz-18KHz

(Power Rating): 250W

(Power Peak): 500W

(Impedance): 8 Ohm

(Sensitivity): 96dB W/M

(Systemtype): 10"*1+1*1.75"

(H*W*D): 500*300*300mm

(Weight): 15KG

Product Highlights

Product Highlights:
 horn speaker system uses direct radiation inverted design, the United States imported BIC unit,, low-frequency deepthickIF mellow, sweet and yet fullhigh-frequency soft and delicate.

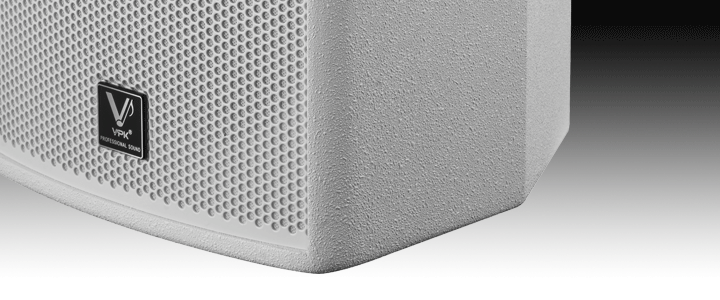

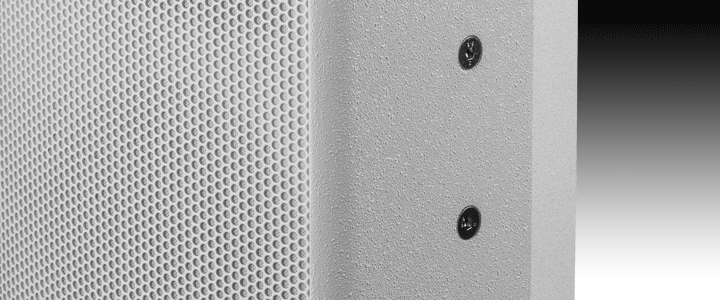

 box with Russian imports of high-density birch plywood, import wood powder bonding, Corner strengthening process, after technicians carefully crafted, the surface of the most popularwater-based paint technology sprinkle
 single-chip high crossoverbass independent divider, Taiwan´s top audio capacitors, high power non-inductive resistor aluminumlarge diameter high-purity air-core inductors.

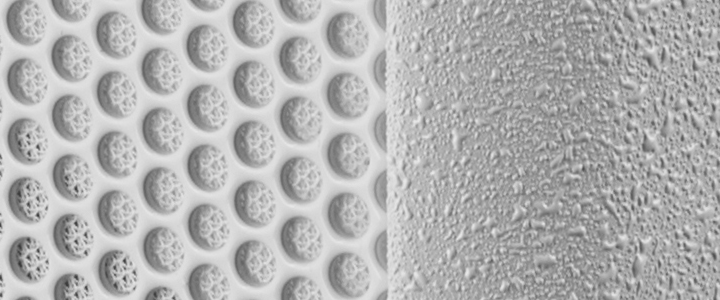

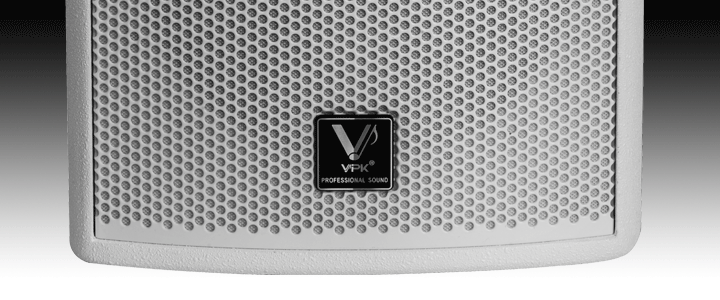

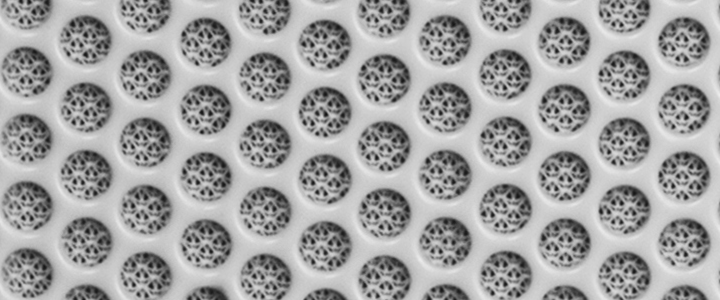

 high strength iron mesh surface using three nylon fiber technology, which can effectively reduce the odd harmonicsenhanced visual appearance, and can effectively protect the use ofsecurity systems unit.

Product Applications
 Amplified music and concert use  upscale nightclubs, exclusive clubs, upscale buffet-style KTV, multi-purpose hall and other places.


Product Testing

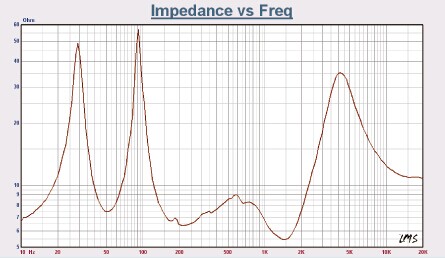

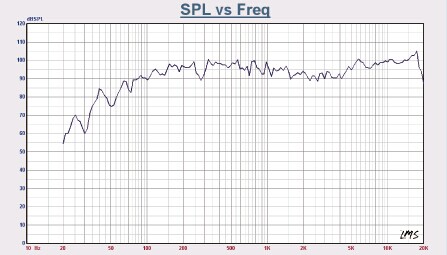

               PW-10 Frequency response curve                     PW-10 Impedance graph
